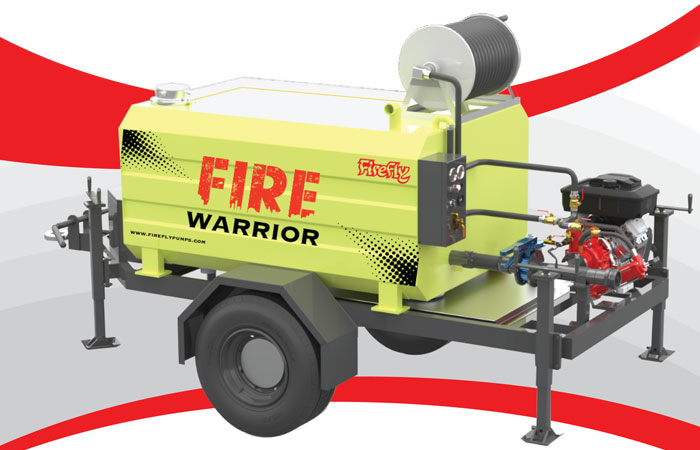

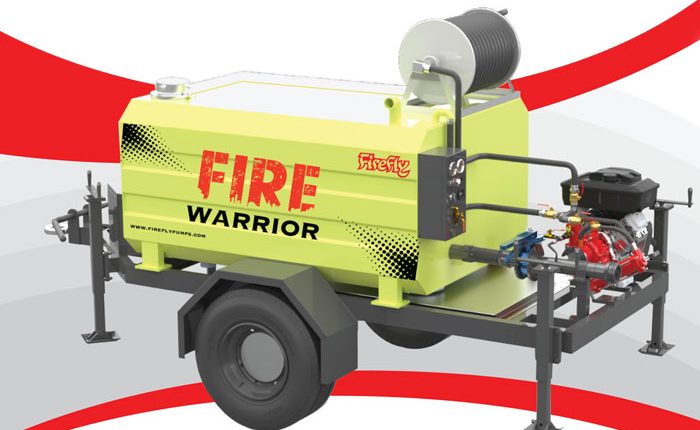

Trailer Mounted Fire Fighting Pumps – FIRE WARRIOR
FIRE WARRIOR, YOUR DEPENDABLE EMERGENCY RESPONDER
Salient Features
- Two persons can effortlessly maneuver the Single axle trolley.
- Can be towed easily with Tractor or any type of LCV vehicle.
- Effective in firefighting up to 20 minutes in golden hours backed by tank capacity range 1500 to 3000 liters & 100 liters foam tank capacity.
- Can douse the fire also with the foam with the help of round the pump foam system.
- 3 inches (75 mm) Suction hose for open water source using the pump Or Tank can be refilled externally from the overhead fill.
- 1 inch (25 mm) discharge for high pressure NXT 200 nozzle and foam firefighting.
- 1.5 Inches (38 mm) discharge for Quadrajet nozzle.
- Flood lamp for night operations.
Technical Specifications
- Rate Duty Point : 150 LPM @ 18 BAR | 500 LPM @ 10 BAR (*Note: The above performance can be achieved at NTP conditions.)
- Engine Power : 4 stroke-18 HP Petrol Engine
- Fuel and Fuel Tank Capacity: Petrol | 8.5 Liters
- Primer : Manual operated Hand primer
- Priming Performance : Up to 8 meters
- Suction : 75 mm
- Delivery outlets: 38 mm (N P) | 19 mm (H P)
Industry
- Small Municipals
- Toll Plaza
- Resorts
- Industries in Remote Areas
- Warehouses
- Shopping Malls
