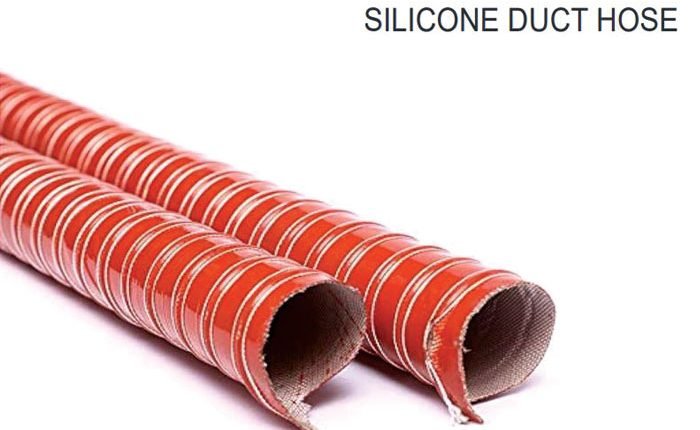

Imaduct Silicone Duct Hose by Ami Polymer

308

A Detailed Overview

ImaDuct Silicone Duct Hose is a high-performance flexible ducting solution offered by Ami Polymer Pvt. Ltd., designed to meet the rigorous demands of various industrial applications. This product combines the advantageous properties of silicone with advanced construction techniques to deliver exceptional performance in challenging environments.

Key Features

Temperature Resistance: ImaDuct silicone duct hoses are engineered to withstand extreme temperatures. They typically perform efficiently in a wide temperature range, from -60°C to +260°C (-76°F to +500°F). This makes them suitable for applications involving both very high and very low temperatures.

Flexibility: The hoses are highly flexible, allowing for easy installation in complex or tight spaces. This flexibility also accommodates movements and vibrations in dynamic systems, ensuring reliable performance without kinking or collapsing.

Durability: Silicone material used in ImaDuct hoses is resistant to aging, UV radiation, and ozone, which significantly extends the product’s lifespan. These hoses maintain their integrity and functionality even in harsh outdoor environments.

Chemical Resistance: ImaDuct hoses offer excellent resistance to a wide range of chemicals, including acids, bases, and solvents. This makes them ideal for use in chemical processing industries where exposure to corrosive substances is common.

Non-Toxic and Non-Reactive: Silicone is an inert material, meaning it does not react with most chemicals or materials. This property is crucial for applications in the food, pharmaceutical, and medical industries where contamination needs to be minimized.

Lightweight: Compared to metal ducting solutions, ImaDuct hoses are much lighter. This reduces the load on supporting structures and makes handling and installation easier.

Construction and Design

ImaDuct silicone duct hoses are constructed using advanced materials and techniques to ensure optimal performance:

Inner Layer: The inner surface is made from a smooth silicone lining that facilitates easy flow of materials and minimizes friction. This layer is designed to resist the build-up of particulates and ensure clean transport of gases or fluids.

Reinforcement: To provide structural integrity, the hoses are reinforced with layers of fiberglass or polyester fabric. This reinforcement allows the hoses to withstand internal pressures and external mechanical stresses.

Helix Wire: A steel or plastic helix wire is often embedded within the hose structure. This wire provides additional support, maintaining the hose’s shape and preventing collapse under vacuum conditions. It also enhances the hose’s ability to flex without kinking.

Outer Layer: The exterior is coated with a thicker layer of silicone, which offers protection against abrasion, environmental elements, and mechanical damage. This outer layer ensures the hose can endure rough handling and external impacts.

Applications

ImaDuct silicone duct hoses are versatile and find applications across various industries due to their robust properties:

Automotive Industry: Used in air intake systems, turbochargers, and coolant systems, where high-temperature resistance and flexibility are essential.

HVAC Systems: Employed in heating, ventilation, and air conditioning systems to move hot or cold air efficiently while withstanding temperature extremes and vibrations.

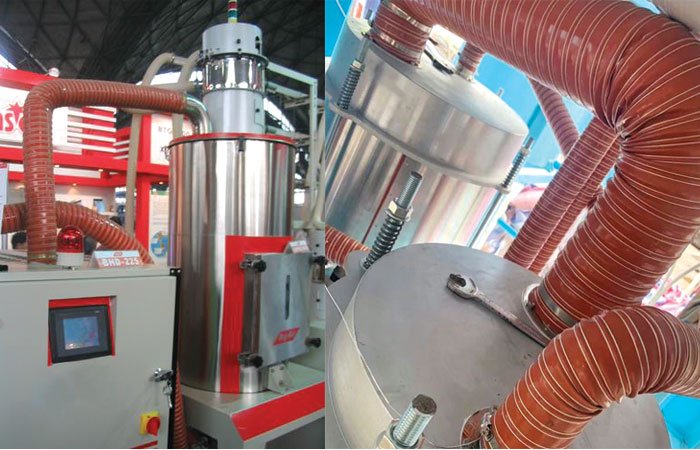

Industrial Processes: Ideal for conveying hot air, gases, or lightweight materials in processes such as plastic molding, chemical manufacturing, and food processing.

Aerospace: Used in aircraft ducting systems for hot air and cooling due to their lightweight and high-performance characteristics.

Medical and Pharmaceutical: Suitable for environments that require non-toxic, non-reactive materials to prevent contamination and ensure safety.

  • Major Application as per below:
  • Automotive
  • Dryer Hose
  • Plastic Industry
  • Air Craft
  • Brake Ducting
  • Cap Ventilation
  • Defroster/Heater Hose
  • Dry Cleaning
  • Exhaust Systems
  • Tractor Pull Exhaust
  • High Temperature Applications
  • Rocket Support Duct
  • Transmission Cooling

Maintenance and Care

To maximize the performance and longevity of ImaDuct silicone duct hoses:

Regular Inspection: Conduct routine checks for signs of wear, tears, or any form of damage. Early detection of issues can prevent failures and extend the hose’s service life.

Cleaning: Periodically clean the hoses to prevent buildup of dust, debris, or chemicals that might degrade the material.

Proper Installation: Ensure hoses are installed correctly, avoiding excessive bending or tension that could damage the hose.

Avoid Over-Bending: Follow manufacturer guidelines regarding the minimum bend radius to prevent kinking and ensure smooth operation.

Conclusion

ImaDuct silicone duct hoses by Ami Polymer offer a reliable and efficient solution for demanding industrial applications. Their superior temperature resistance, flexibility, durability, and chemical resistance make them an excellent choice for a wide range of uses, from automotive and aerospace to HVAC and medical industries. Proper maintenance and installation practices will further enhance their performance and longevity, making them a valuable asset in any industrial setup.
