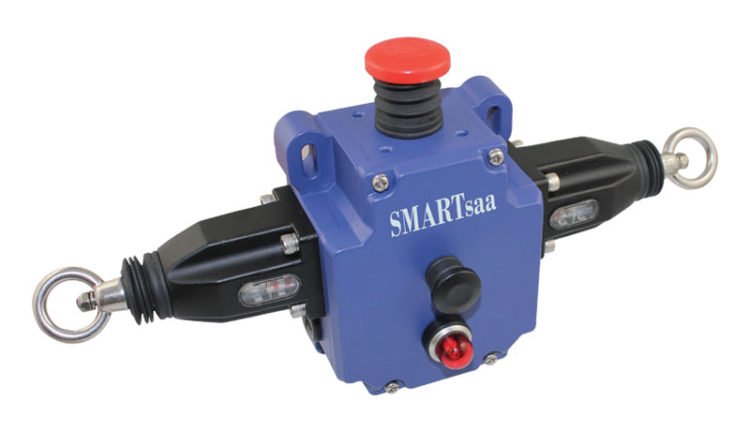

Safety Pull Cord Switch

On Oct 30, 2018

SMARTsaa. An associate company of Protocontrol Instruments I Pvt. Ltd. Pune offers new and advanced range of Safety Pull Cord Switches for use on machines like cutting machines, printing machines and wood working machines for emergency stoppage. To be used with steel wire. The contacts of these switches are to be interlocked such that when switch is operated the machine should stop, protecting human, machines and other vital and machine elements.

Salient Features:

The switch works actuates contact when rope is pulled
The switch also actuates when rope is broken, slack
The switch provided with reset button for local reset
Single switch for long conveyors up to 160 Mtrs against multiple number of conventional switches
Robust design, Enclosure , totally sealed IP 67
Optional LED indicator
Compatible to EN418 norms
Confirms to EN60947-5-5 , IEC60947-5-1
Available in Single side operation or both side operations

The rope is to be hooked around the work area and at convenient height such that the operator will find is convenient to pull when in an emergency by using turn buckle, spring and thimbles.

The switch resets when rest push button on switch is pressed. The switch designed for different rope length up to 120 meters is available. Single side operation (left or right side) as well as both side operation options are available. Special switches with rope break indication contact are also available. LED indication lamp can be provided for remote indication

Specifications:

Safety Pull Cord Switch
Operation: Left, Right, both way operations
Rope length: Both side operated switch: Up to 80 Meters each side
Contact arrangement: 1 NO + 1 NC, 4 NC / 2 NO, 2 NC / 1 NO,
Contact Rating: 10 Amp resistive at 230 V AC
Enclosure: Field mounting IP 65 / IP 67, Plastic, Metal
Cable Entry: ½ inch NPT

Accessories: Pull Cord Cable, Turn Buckle, Wire Rope Thimble (Rope Eye), Pulley, Stay Bolt, spring
