High Speed Entrance Control, Prama Hikvision

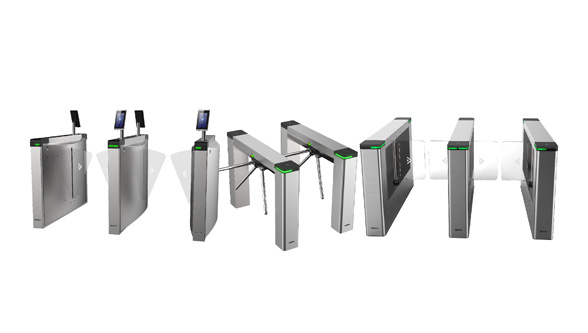

Prama Hikvision, the India’s leading video security solution provider, has launchedHigh Speed Entrance Control Products – Swing Barrier, Tripod Turnstile & Flap Barrier. TheseHigh Speed Entrance Control Products ensure flexible solutions and fast access. It helps system integrators, installers and architects to choose any combination of identification sensors and build barrier gate solution as per the requirements.

These High Speed Entrance Control Products (Swing Barrier, Tripod Turnstile & Flap Barrier)are used in Airports, Seaports, Metro Rail and Railway Terminals, Corporate Offices, Banking and Financial Institutions, Industrial complexes, Government Offices, Education, Parks, Museums, etc.

Swing Barrier Gate

Technological advances and the need for automation across various verticals is driving swing barrier gate adoption. The DS-K3B601 Swing Barrier Gate can be installed in combination with various identification sensors, such as intelligent Card Reader, fingerprint readers, and the Facial Recognition Terminal (DS-K5603-Z) with Prama Hikvision’s proprietary algorithm.Whatever your need is, we can provide the proper solution or a combination of solutions customized for a perfect fit.The Card Reader supports standard Wiegand 26/34 interface.

The Swing Gate supports standard Wiegand interface or 485 interface. These swing gates offer the best-in-class quality and the highest efficiency. Unlock more advanced features with the professional iVMS-4200 Access Control Software, such as alarm linkage, anti-passback, and much more.

Impeccable Quality: TheSwing Gates are made of Stainless Steel that meets the AISI304 standard. It has Anti-crash protection with 1.5 mm stainless steel.

Other features include:

  • Guaranteed 5 million gate swings.
  • 12 pairs of IR detectors.
  • High throughput at 30 – 40 persons per minute
  • Anti-crash swing panel
  • Flexible options with customizable width and number of passages
  • Immediate response (less than 0.5 seconds).

Advanced Features: Unlock more advanced features with the professional iVMS-4200 Access Control Software, such as alarm linkage, anti-passback, and much more.

Facial Recognition: Combined with Combined with the Swing Gate through RS232, Prama Hikvision Facial Recognition Terminal DS-K5603-Z provides an intelligent facial recognition access control solution:

  • 10,000 faces
  • HD face picture with 2 MP camera
  • Up to 99% recognition rate with excellent performance under backlight, dim light, and strong light environments
  • Fast facial registration
  • Live human face detection with 3D function, distinguishes live faces from pictures and videos
  • 1-meter recognition distance
  • Target height between 1.4 m – 1.9 m (4’7” – 6’3”)

Customizable swing gate direction and working modes:

  • Always Open: Allowing access to all
  • Always Closed: Limited access
  • Verification: Access by verification only
  • Adjustable open interval fits various throughputs
  • Gate opens automatically if power is interrupted
  • Works off- and online with remote management via software
  • Prevents unauthorized break-in and tailgating

Tripod Turnstile

  • Stable mechanical components and turntable design
  • Bidirectional(Entering/Exiting) lane
  • When the power is down, the barrier will be dropped automatically for emergency evacuation
  • System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
  • LED indicates the passing direction(forbidden or available)
  • Adjust the passing time duration via DIP switch on the control board
  • Multiple people can pass through the lane at a time after the continuousauthentication of the passed people
  • Standard system input; wires with different kinds of card readers
  • Remote control and management
  • Stable system operation and low noise operation

Flap Barriers

  • 32-bit high-speed processor
  • Permissions validation and anti-tailgating
  • Remaining open/closed mode selectable
  • Bidirectional(Entering/Exit) Lane, The barrier opening and closing speed can be open or stop according to the visitor flow
  • The barrier will be open or stop working when people are nipped
  • Anti-Passback-Accessing
  • Self-detection, Self-diagnostics, and automatic alarm
  • Audible and visual alarm will be triggered when detecting intrusion, tailgating reverse passing, and climbing over barrier
  • Remote control and management
  • Online/offline operation
  • TCP/IP network communication, the communication data is specially encrypted to relieve the concern of privacy leak
  • LED indicates the entrance/exit and passing status
  • Fire alarm passing
